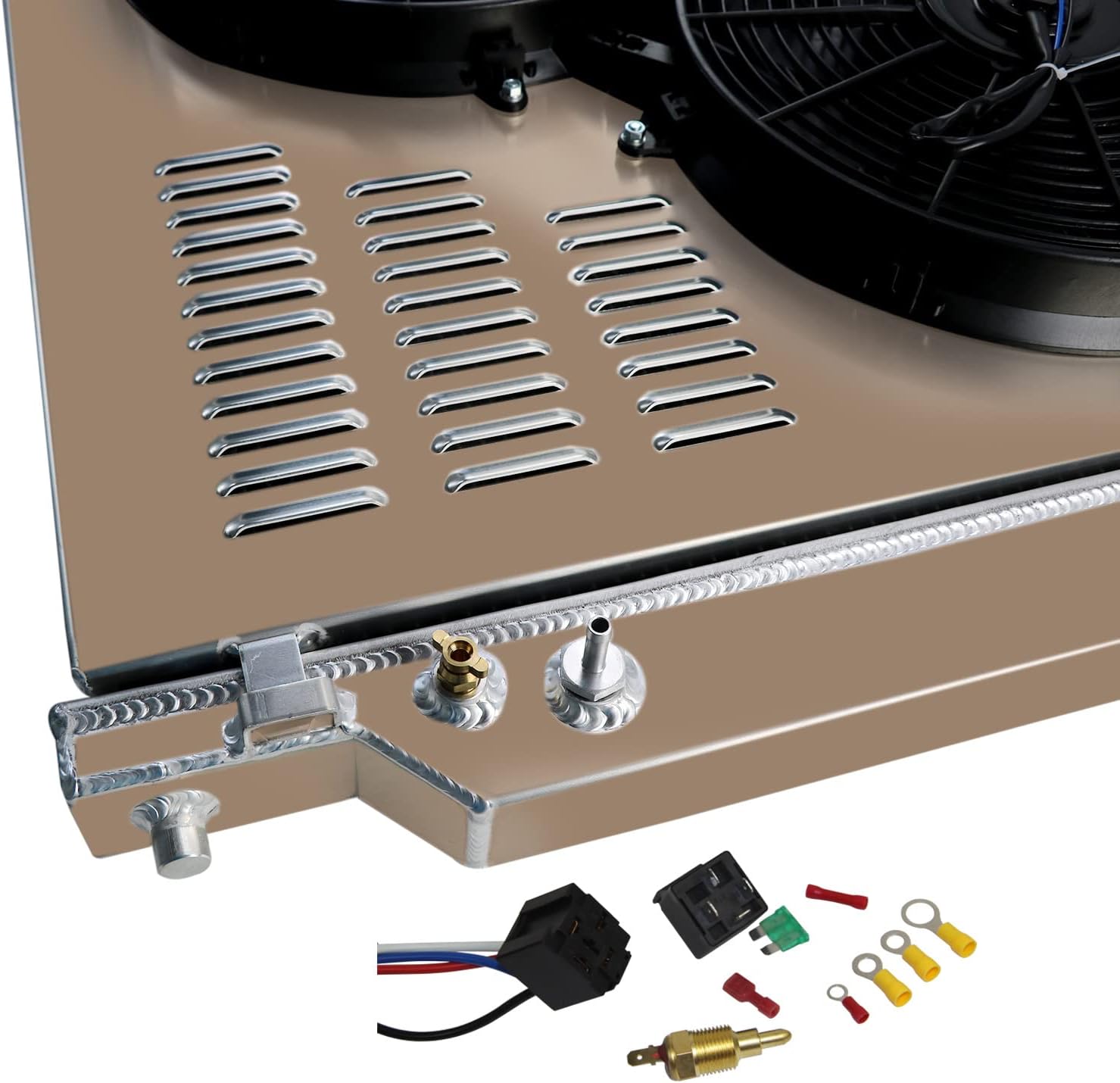

1 Row Aluminum Radiator + Shroud + Fan + Relay Fit 2003-2007 Ford F-250/F-350/F-450 Super Duty 6.0L V8

Fitment For 2003-2007 Ford F-250 Super Duty 6.0L V8 For 2003-2007 Ford F-350 Super Duty 6.0L V8 For 2003-2007 Ford F-450 Super Duty 6.0L V8 For 2003-2007 Ford F-550 Super Duty 6.0L V8 Radiator Details Row Count: 1 Row Upper Inlet: 1.77in located on driver side Lower Outlet: 1.97in located on passenger side Surface Finish: Includes CNC machined filler neck and cap OEM style brass petcock drain CNC machined filler neck and cap Fans Size Maximum Fan CFM: 2300±200 Fan Diameter X Height X Thickness:12.05" X 12.05" X 2.5" Number of Blades: 10 blades (Plastic) Amp Draw: 12.70 amps Maximum Fan RPM: 2,250 rpm Thermostat Kit RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Part Number Manufacturer Part Number: 2741, CU2741, DPI2741 Interchange Part Number: RAD2741 Other Part Number: FO3010256, 4C3Z 8009BA, 4C3Z8009BA

• Core Size: 28.9in H x 28.54in W Overall Size: 34.2in H x 30.16in W
• Inlet/Outlet Diameter:1.77in/1.97in
• Package Include: Come with 1 x 1 Row Complete Radiator. 1x Aluminum Shroud.2x12”Fans.1x Thermostat Relay Kit
• Easy To Install: Lightweight direct fit for easy installation,no modifications required.
• Crafted by our professional team using the highest-grade materials for exceptional longevity.
