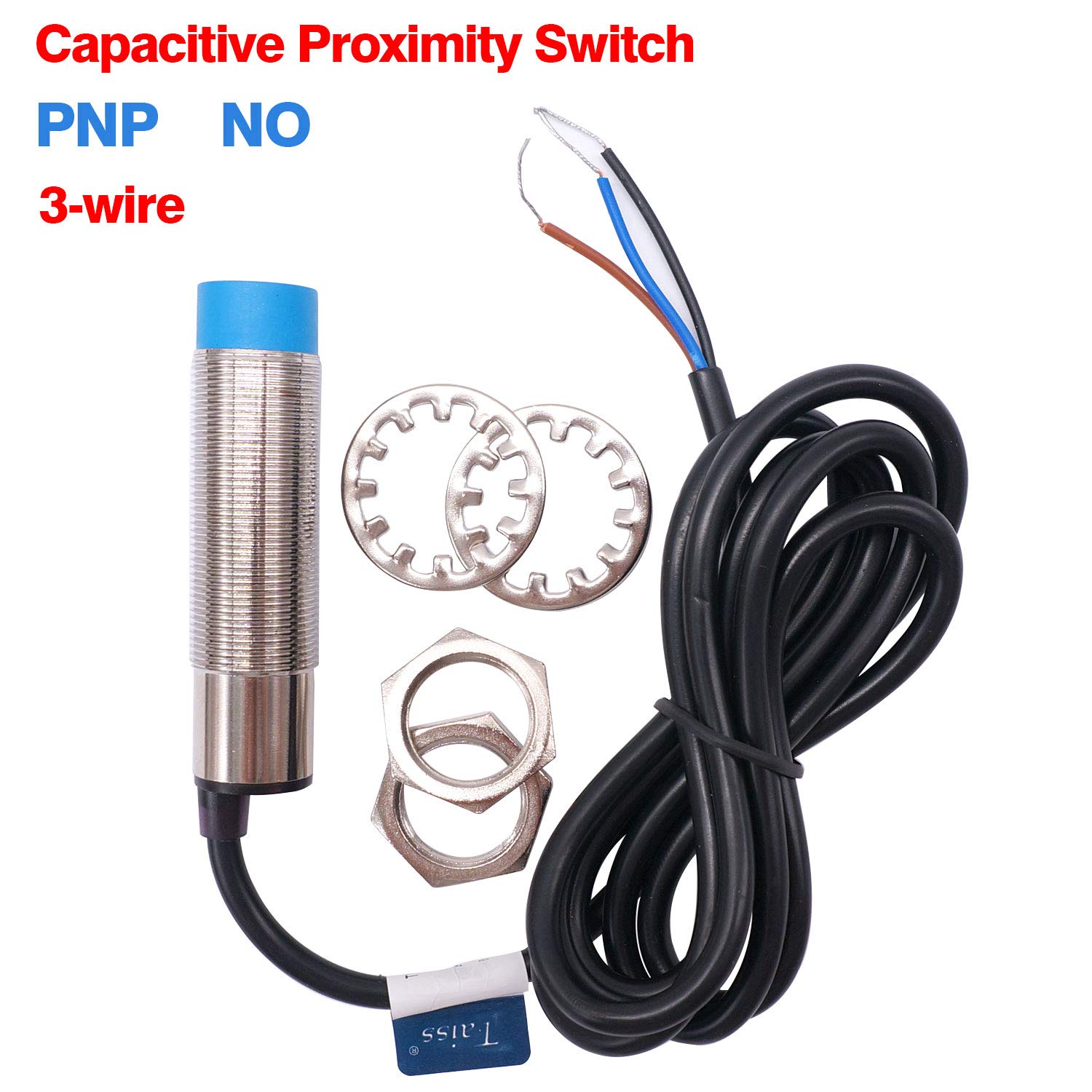

Taiss LJC18A3-H-Z/BY Proximity Switch 1-10mm Distance Measuring Capacitance Proximity Sensor Switch PNP NO（Normally Open）DC 6-36V 300mA M18 3-Wire

It is a component widely used in automatic control industry for detecting, controlling, and noncontact switching. When proximity switch is close to some target object, it will send out control signal. As it is capacitive type proximity switch, its detecting object target is not limited to only conductor, but also liquid and even powder things, like plastic, water, glass, oil, etc. It's widely used in machine, paper making, light industry for limiting station, orientation taking count, speeding trial ect. Product Name : Capacitive Proximity Switch;Switch Appearance Type : Cylinder Type Theory : Capacitance Sensor;Output Type : PNP NO(Normal Open);Diameter of Head : 18mm;Detecting Distance : 1-10mm Detecting Object : Metal or Nonmetal Material;Supply Voltage : DC 6-36V;Current Output : 300mA;Response Frequency : 100Hz Size : 7.5 x 4cm/3'' x 1.6'' (L*Max. Dia);Material : Plastic, Alloy

• Product name: Capacitive Proximity switch; model: ljc18a3-h-z/by; wire Type: DC 3 wire Type (Brown, black, Blue); switch appearance Type: cylinder Type
• Theory: Capacitance sensor; output Type: PNP no(normal open); diameter of head: 18mm; detecting distance: 1-10mm
• Detecting object: metal or non-metal material; supply Voltage: DC 6-36v; current output: 300mA; response frequency: 100Hz
• Operating temperature: -25 c to +65 c (non-freezing condition); Size: 7. 5 x 4cm/3'' x 1. 6'' (l*max. Dia); cable Length: 120cm/47 inch
• Net weight: 85G; color: Silver Tone, Blue, black; package content: 1 x Capacitive Proximity switch
